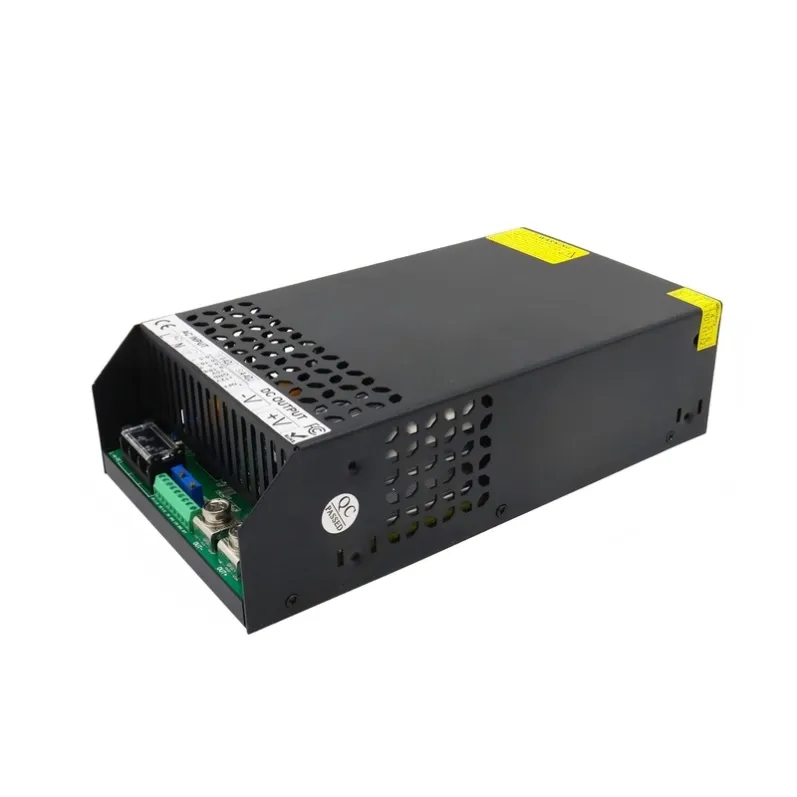

SE-1000 1000W Industrial Switching Power Supply
1 kW Single-Output Enclosed AC-DC Power Supply · 8 Output Models from 12 V to 110 V DC
Key features:
- 1 kW continuous output, 8 DC models: 12 / 24 / 36 / 48 / 60 / 72 / 80 / 110 V
- Wide AC input 110/220 V selectable — works on both 110 V and 220 V grids
- Built-in multi-fan cooling + honeycomb shell for stable full-load operation
- Adjustable output voltage (V-ADJ) & current (A-ADJ) via front potentiometers
- Full protection: short circuit / over current / over voltage / over temperature (SCP / OCP / OVP / OTP)
- CE / FCC / RoHS compliant design; screw terminals for +V / −V / GND
Applications
- LED lighting & signage power
- Laser modules & engraving machines
- Battery / EV chargers Industrial automation & control cabinets
- Test & aging (burn-in) equipment
- CCTV & communication equipment
Model | Output V (DC) | Rated current | Output range | Ripple & noise (max.) | Efficiency (typ.) |
SE-1000-12 | 12 V | 83 A | 0–83 A | 150 mV | 85 % |
SE-1000-24 | 24 V | 42 A | 0–42 A | 200 mV | 88 % |
SE-1000-36 | 36 V | 28 A | 0–28 A | 240 mV | 89 % |
SE-1000-48 | 48 V | 21 A | 0–21 A | 300 mV | 89 % |
SE-1000-60 | 60 V | 17 A | 0–17 A | 350 mV | 90 % |
SE-1000-72 | 72 V | 14 A | 0–14 A | 400 mV | 90 % |
SE-1000-80 | 80 V | 12.5 A | 0–12.5 A | 450 mV | 90 % |
SE-1000-110 | 110 V | 9.1 A | 0–9.1 A | 500 mV | 90 % |
Common parameters
Item | Specification |
Input voltage | AC 110 / 220 V selectable (switch), 50/60 Hz |
Output adjustment | Voltage (V-ADJ) ±10 %, Current (A-ADJ) 0–100 % |
Protection | SCP / OCP / OVP / OTP |

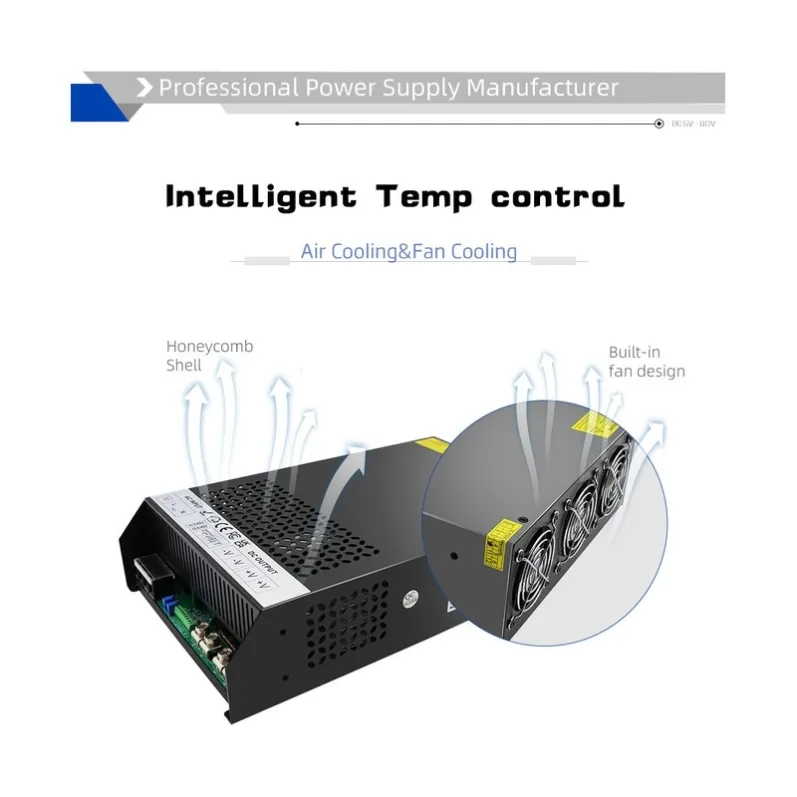

Cooling | Built-in multi-fan + honeycomb air cooling (intelligent temp control) |
Working temperature | −10 ~ +60 °C (derate above +50 °C) |
Storage temperature | −20 ~ +85 °C |
Humidity | 20 ~ 90 % RH, non-condensing |
Withstand voltage | I/P–O/P: 1.5 kV AC |
Safety / compliance | CE / FCC / RoHS design |

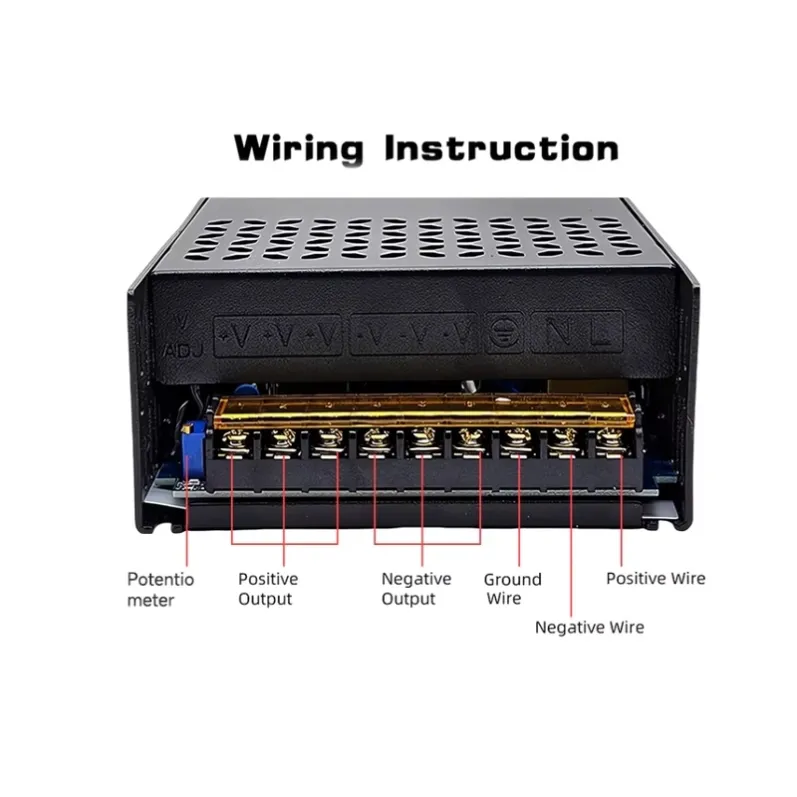

Connection | AC: L / N + fuse; DC: +V / −V / GND screw terminals |
Dimensions / weight | Available on request |
