50W High Voltage Power Supply for Oil Fume Purification (ESP) - 12kV Ioniser

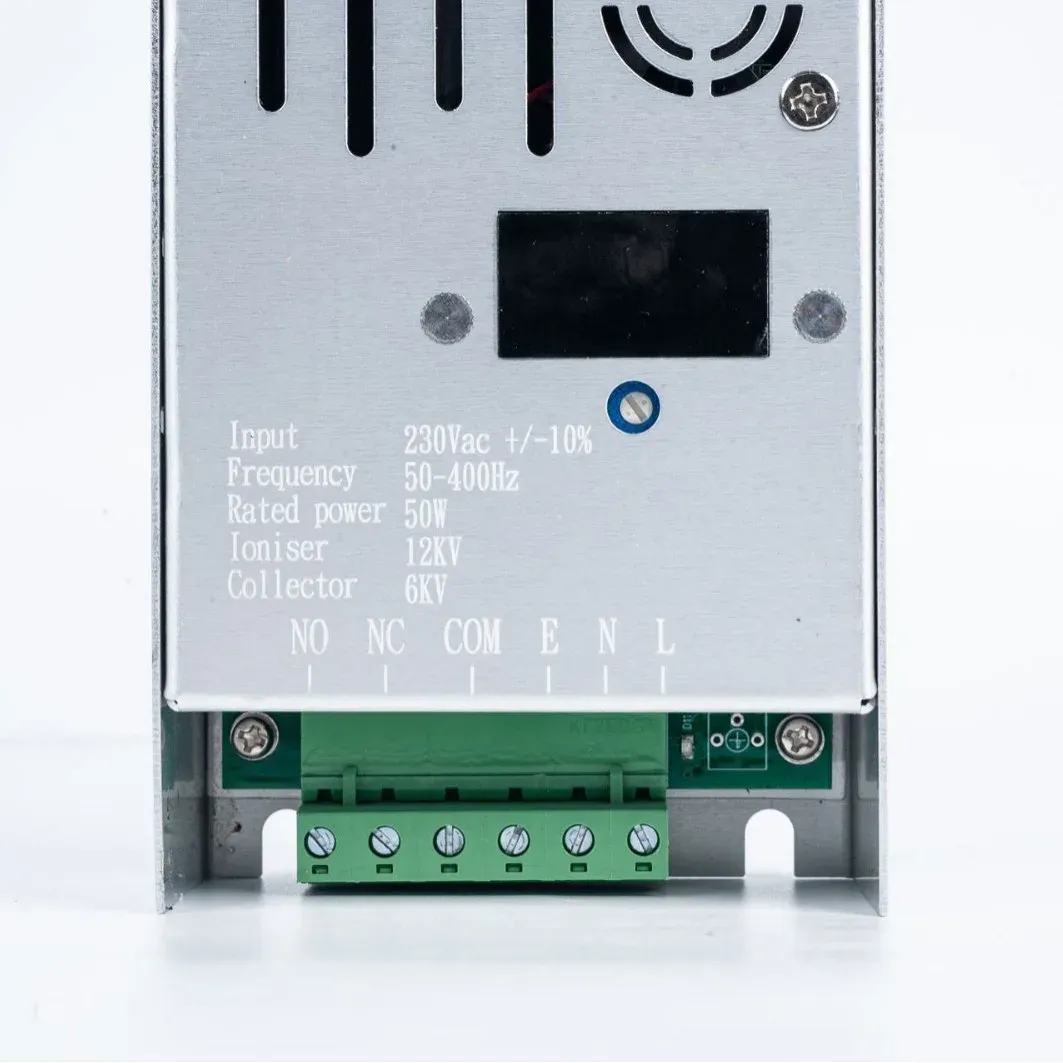

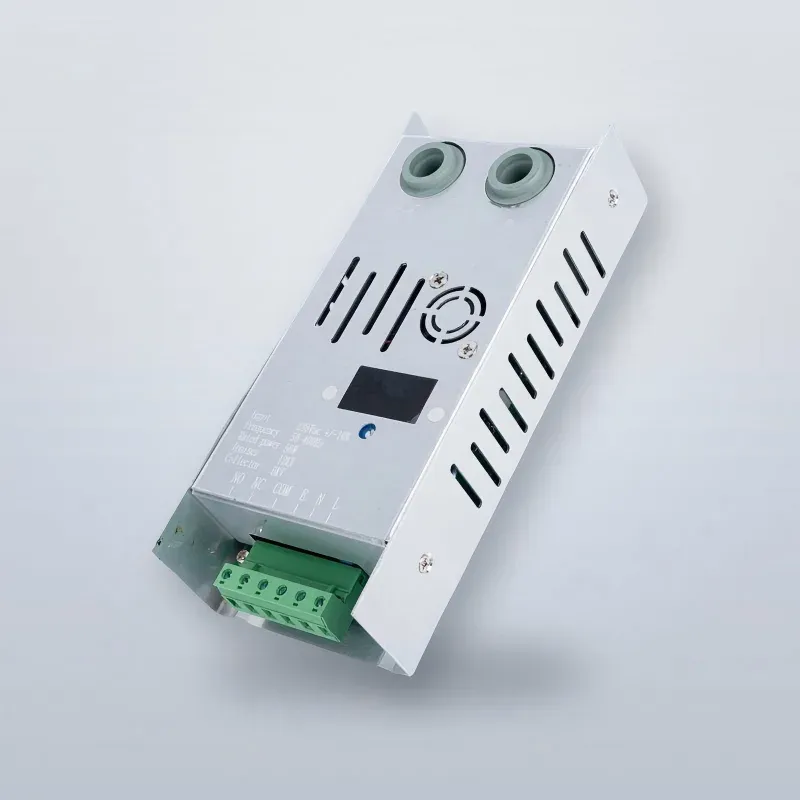

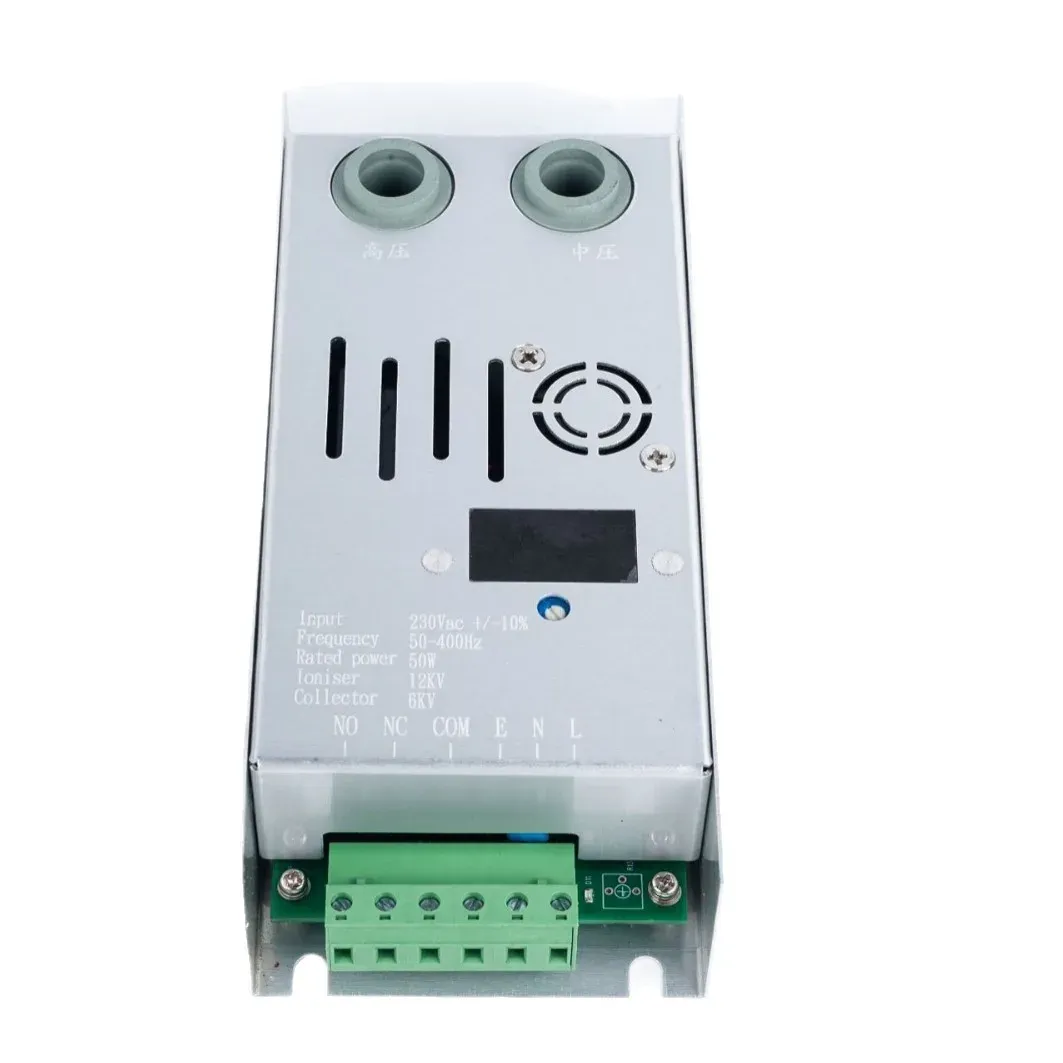

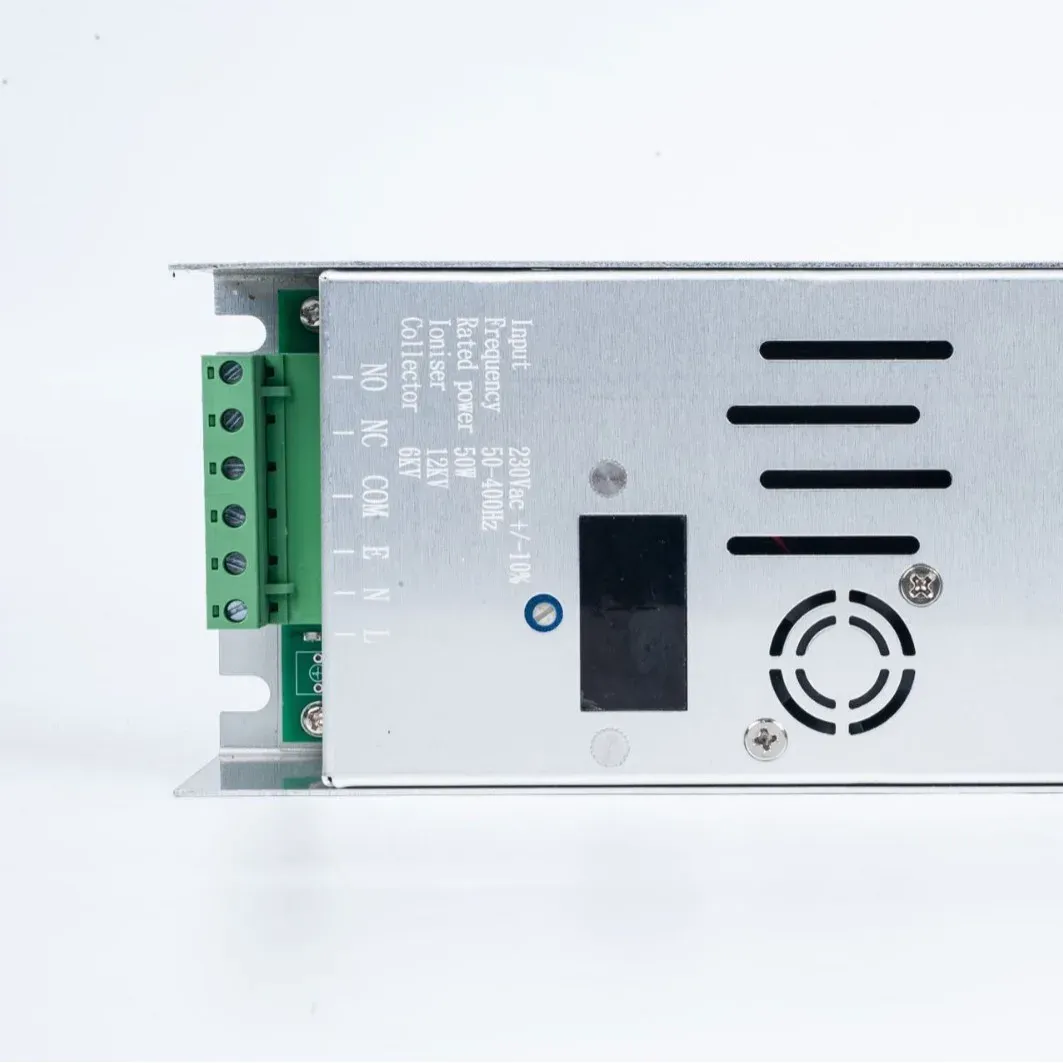

The CY-05 is a 50W high-voltage power supply for electrostatic oil fume purifiers. It runs from a 230 V AC input and delivers a 12 kV ioniser output, with a 6 kV collector output on the two-output version.
Key | Value |
|---|---|
Model | CY-05 |
Rated Output Power | 50 W |
Ioniser Output Voltage | 12 kV |
Collector Output Voltage | 6 kV (two-output version) |
Output Configuration | Single high voltage, or ioniser + collector (high-low voltage optional) |
Input Voltage | 230 V AC +/-10% |
Input Frequency | 50Hz |
Processing Air Volume | 4000-8000 m3/h |
Dimensions (L x W x H) | 240 x 130 x 82 mm |
Net Weight | 1.25 kg |
Port Size | 20 mm |
