Switching Power Supply 3600W

3600W Industrial Switching Power Supply

SE-3600 Industrial Switching Power Supply

3.6 kW single-output enclosed AC-DC power supply · 9 output models, 12 V to 220 VDC

Key Features

Input voltage range: AC 185–265 V

Protection: short circuit / over current / over temperature

Analog voltage control

Main circuit external on/off control

Description

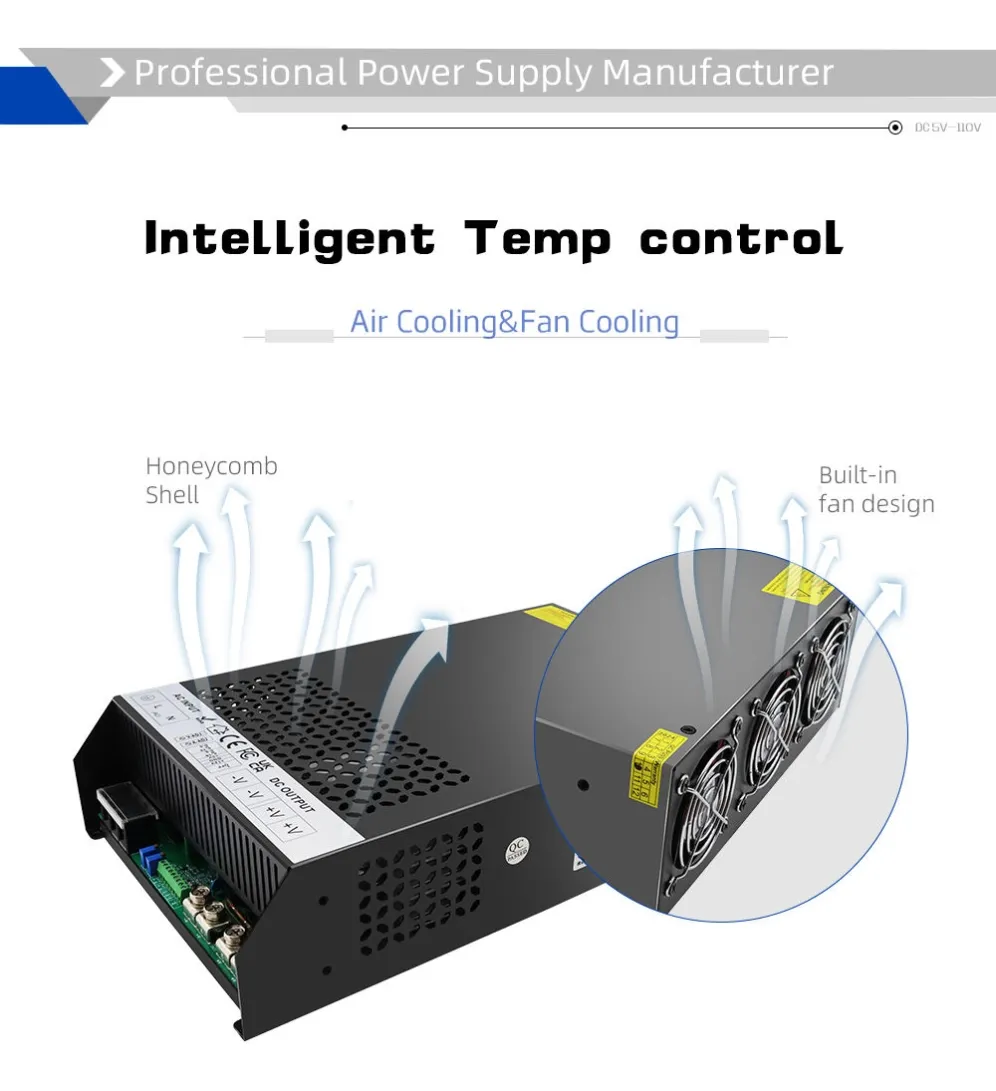

SE-3600 is a 3.6 kW single-output enclosed AC-DC power supply. The entire series accepts AC 220 V input with a voltage range of AC 185–265 V and provides DC output that meets most industrial requirements. Each model is cooled by an internal variable-speed fan and can operate at a temperature of up to 60 °C. Built-in functions such as adjustable output voltage and current, remote on/off control, and an auxiliary power supply offer various design flexibilities.

Applications

Industrial Control & Automation

Laser-related Machinery

UV Curing Equipment

Charging Equipment

Test & Measurement Instruments

Aging Equipment

Technical Specifications

1. Model-specific parameters

Parameter	SE-3600-12	SE-3600-24	SE-3600-36	SE-3600-48	SE-3600-72	SE-3600-96	SE-3600-110	SE-3600-150	SE-3600-220
Output
Output voltage (DC)	12 V	24 V	36 V	48 V	72 V	96 V	110 V	150 V	220 V
Rated current	300 A	150 A	100 A	75 A	50 A	37.5 A	32.7 A	24 A	16.4 A
Output current range	0–300 A	0–150 A	0–100 A	0–75 A	0–50 A	0–37.5 A	0–32.7 A	0–24 A	0–16.4 A
Ripple & noise (max.)	250 mV	270 mV	300 mV	400 mV	500 mV	600 mV	850 mV	900 mV	1000 mV
Optimal constant current range	6–12 V	12–24 V	18–36 V	24–48 V	36–72 V	48–96 V	55–110 V	75–150 V	110–220 V
Efficiency (typ.)	83 %	86 %	87 %	89 %	90 %	90 %	90 %	91 %	91 %
Functions
Output voltage adjustment	0–13.2 V	0–26.4 V	0–39.6 V	0–52.8 V	0–79.2 V	0–105.6 V	0–121 V	0–165 V	0–242 V
Output current adjustment	0–300 A	0–150 A	0–100 A	0–75 A	0–50 A	0–37.5 A	0–32.7 A	0–24 A	0–16.4 A
